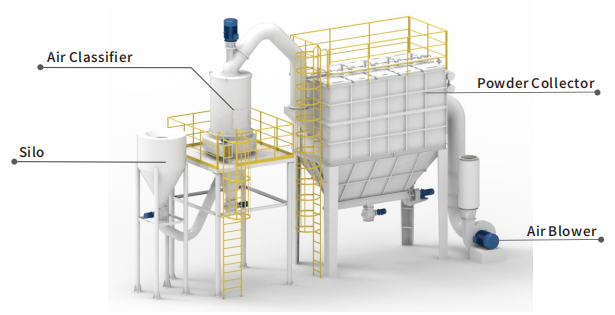

Process Flow Diagram of Air Classifier

Application

1. It could prefect suitable for different kinds grinding mills such as airflow impacting mills, grinding roller mills, ball mills, Raymond mills, etc, and works in a closed circuit system.

2. Using Longyi air classifier, the particle size could reach to 4000-5000 mesh.

Technical Advantages

Wide Adjustable Range

By controlling the inverter motor, the classifying system can be adjusted according to different needs to obtain the target particle size.

High Precision

Classifying impeller is made of wear- resistant material with high precision, stable transmission and long service life.

Accurate Control

The secondary air intake system uses electronically controlled dampers system to achieve precise control of the air volume of the air intake with high degree of automation.

High Efficiency in Classifying

High classifying efficiency, the material passes through the classifier wheel with high- speed rotating and the cyclone eddy generated by the secondary air inlet, further separating the fine particles mixed or adhered with coarse particles, improving the efficiency and accuracy.

PLC Intelligent Control System

Fully automatic PLC control system, simple operation, centralized control, remote diagnosis and other automatic and intelligent docking can be realized.

Models and Parameters of Air Classifier
