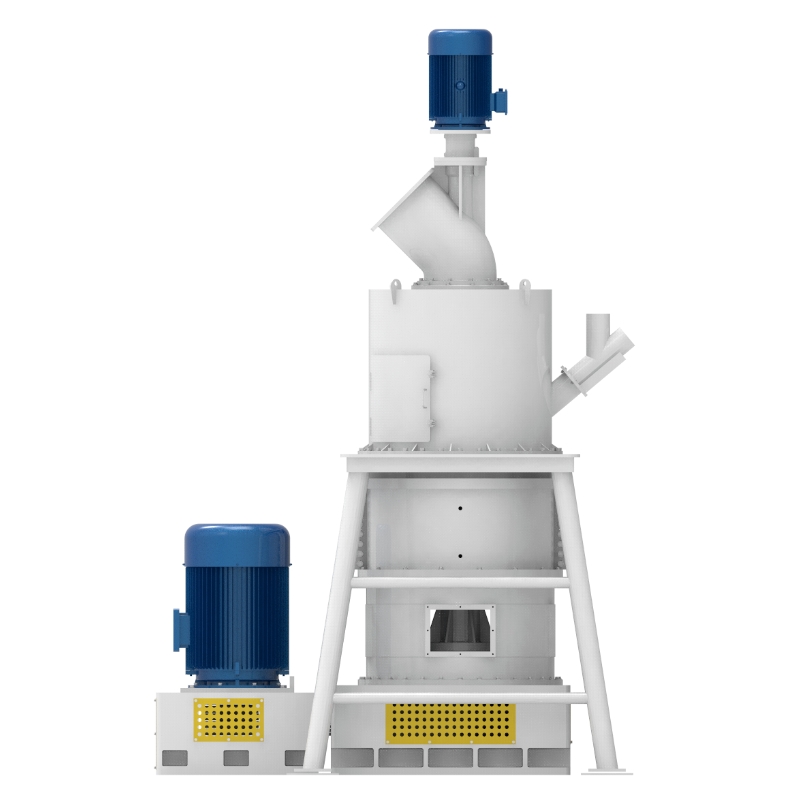

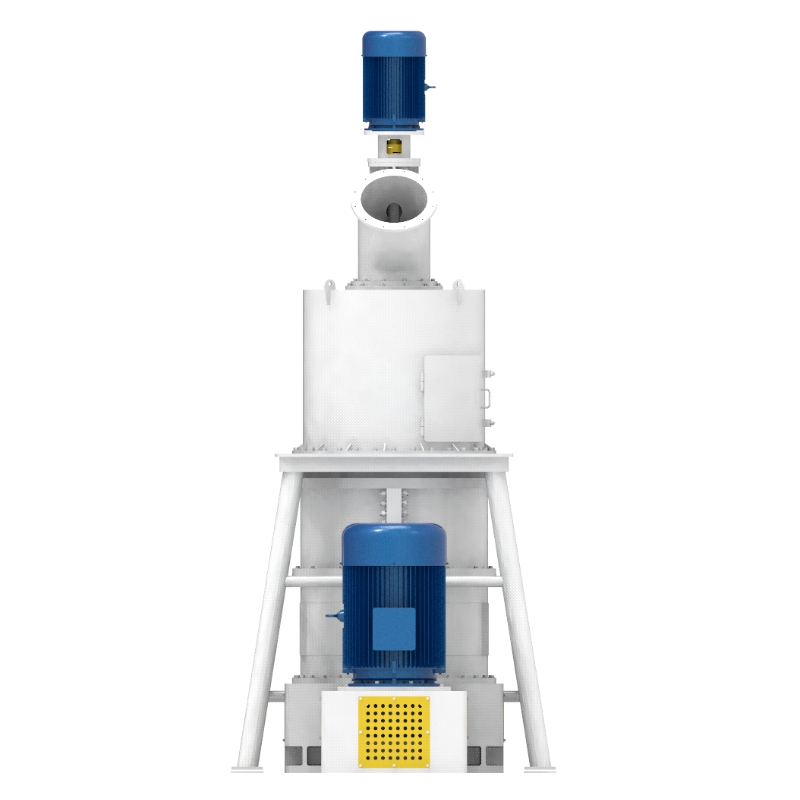

Grinding Roller Mill

Longyi New-type grinding roller mill series is a new grinder depending on its technology R&D capability and referring to similar products' advantages home and abroad. It has comprehensive mechanical crushing properties such as rolling, grinding and impacting. According to clients' different requirements to finished powder, our company can provide diverse and customized solutions to help clients produce customized powder products. This series has such features as large output, lower energy-consumption, long operating Life and easy to maintenance. It is a perfect option for customers who prefer high return from investment.

  • Product Details

Longyi New-type grinding roller mill series is a new grinder depending on its technology R&D capability and referring to similar products' advantages home and abroad. It has comprehensive mechanical crushing properties such as rolling, grinding and impacting. According to clients' different requirements to finished powder, our company can provide diverse and customized solutions to help clients produce customized powder products. This series has such features as large output, lower energy-consumption, long operating Life and easy to maintenance. It is a perfect option for customers who prefer high return from investment.

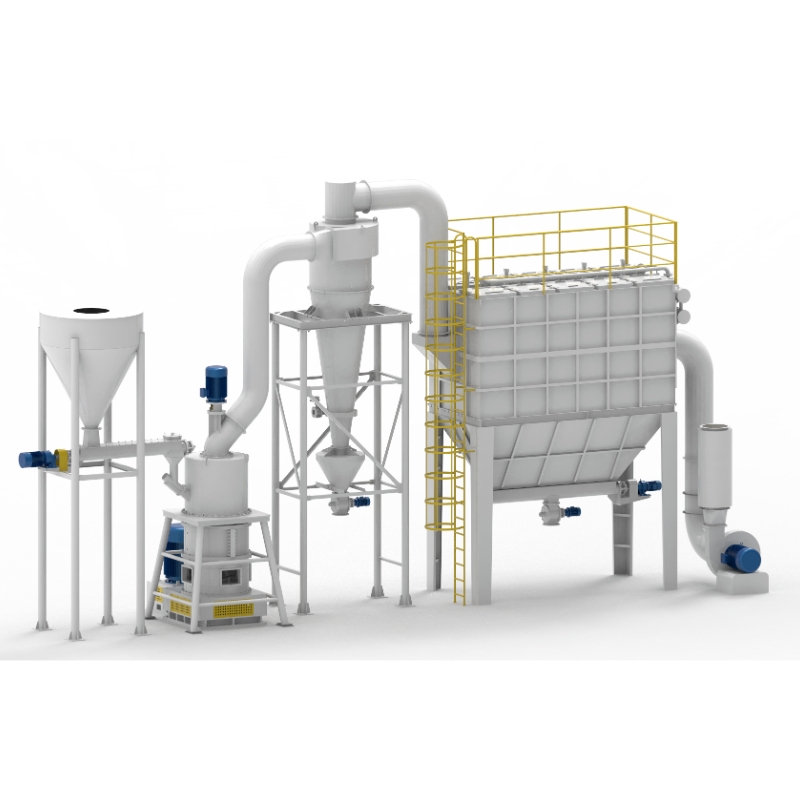

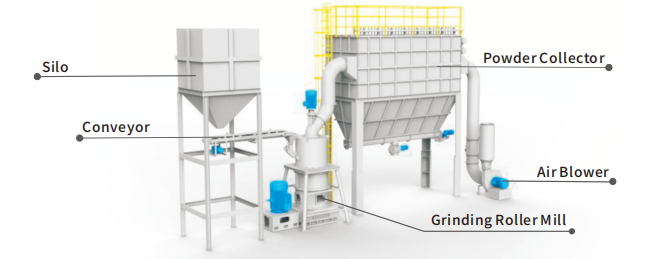

Process Flow Diagram for Grinding Roller Mill



Application

Suitable for processing of calcium carbonate, kaolin, calcite, metal ore and various fields such as cement, electric power, metallurgy, chemical industry and it also can be applied to anode materials, etc.



Technical Advantages

Stable product quality

Meet client's requirements for different fineness powder, finished powder fineness Is adjustable stable quality.



High classifying accuracy

Bulit-in high efficiency classifier, higher classification accuracy, better classification effect.



High output with low energy consumption

Use new upgraded main machine transmission mechanism, it has the features of higher output, Lower energy- consumption, easy to maintain.



Abrasion resistance

All main wear parts use quality abrasion-resisting alloy steel.



Eco-friendly and efficiently

It adopts a fully sealed negative pressure air system, which is eco-friendly and efficiently, with high recovery rate of fine powder, realizing dust-free production and no pollution.



Intelligent control system

Remote centralized control, one-button to operation, intelligent control of feeding material to ensure mill production stable and high-output.



Low investment costs

The whole grinding system with a compact structure could save space, low foundation construction cost, it's a cost-effective investment.



Models & Parameters of LYHM Grinding Roller Mill Serie



LYHM-1560



LYHM-1860



LYHM-2200







 Power(KW)

Main Motor

75

132-160

200

Classifying system

18.5-30

30-37

45-75

Feeding system

1.5

1.5-3

3

Air Blower

45

55-75

110-132

Discharge Valve

(φ260×)1.1

(φ260×)1.1

(φ350×)1.5



Air Blower

Air Volume(m3/h)

8000-12000

10000-16000

12000 -18000

Air Pressure(pa)

>10000

>10000

>12000



Rotation Speed(r/min)

Main Motor Shaft

200-300

150-220

130-200

Classifier Wheel

500-3000

500-3000

500-3000

Feeding Conveyor

20-60

20-60

20-60

Powder Fineness(um)

3-35

3-60

3-60

Output Capacity(kg/h)

500-3500

800-10000

1000-13000

Mill Weight(kg)

8000

15000

25000

Size(LxWxH,mm)

10785×3600×7900

11275×4656×8243

1460 1×5200×8998
